• pullpush action tubular Solenoid,12 VDC 6 mm stroke.
  • pullpush action tubular Solenoid,12 VDC 6 mm stroke.

pullpush action tubular Solenoid,12 VDC 6 mm stroke.

The rate voltage of TS-1528 is 12 VDC. In can general minima13g force at stroke 6 mm. It can also be customized by request. The plunger is coated with Teflon.

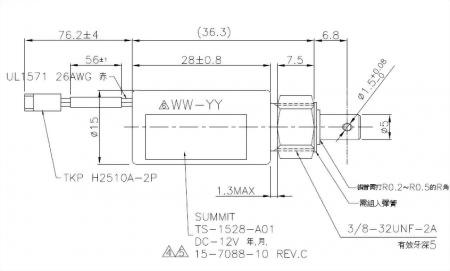

Model : TS-1528

Also known as cylinder solenoid.

The rate voltage of TS-1528 is 12 VDC. In can general minima13g force at stroke 6 mm. It can also be customized by request. The plunger is coated with Teflon.

Rated voltage DC12V
DC resistance 40Ω± 10% @20℃
Dielectric strength AC-600V(50/60Hz) for 1sec
Insulation resistance DC-500V 100MΩ MIN.
Pull force 6mm 13g MIN.
Medicine cabinet lock
