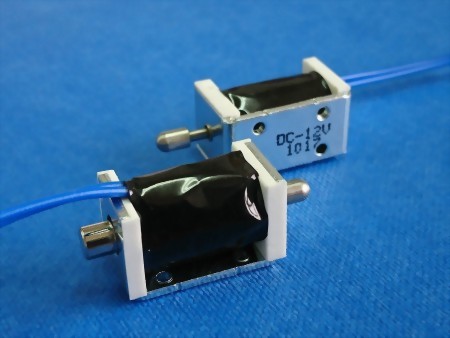

pullpush action frame solenoid, 3 mm stroke, 12VDC

3mm stroke, 12VDC can be customized by requirement. Small size solenoid. Suitable for the devices which have dimensions requirement.
Model : OS-04UA

Also known as open frame solenoid, latch solenoid or linear solenoid.

3mm stroke, 12VDC can be customized by requirement. Small size solenoid. Suitable for the devices which have dimensions requirement.


Rated voltage

DC12V

DC resistance

20Ω± 10% @20℃

Dielectric strength

AC-250V(50/60Hz) for 1sec

Insulation resistance

DC-250V 50MΩ MIN.

Duty cycle

10%

Durability 3,000,000 cycles

Pull force

3mm DC48V

400g MIN.

0mm DC5V

400g MIN.

Utility type solenoid for robots, auto control system
