pullpush action frame solenoid, 5 mm stroke, 6VDC

5 mm stroke, 6 VDC, Customized design service available.

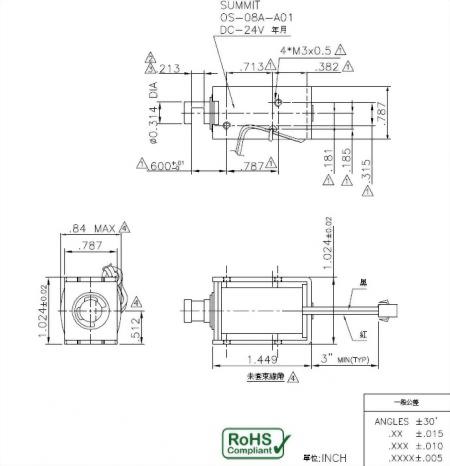

Model : OS-08A

Also known as open frame solenoid, latch solenoid or linear solenoid.

5 mm stroke, 6 VDC, Customized design service available.


Rated voltage DC6V
DC resistance 3Ω± 10% @20℃
Dielectric strength AC-1200V(50/60Hz) for 1sec
Insulation resistance DC-500V 100MΩ MIN.
Pull force 5mm 540g MIN..
0mm 2200g MIN.
Automatic control systems
