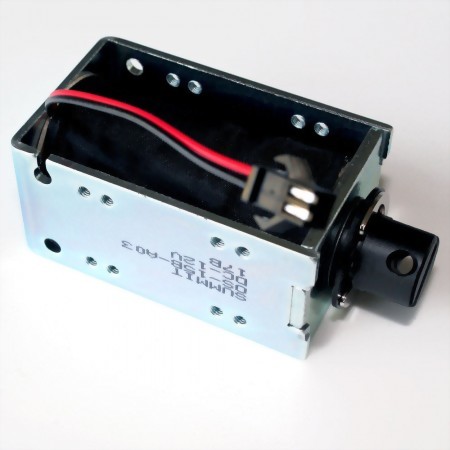

• pull/push action frame solenoid, 10 mm stroke, 12VDC
  • pull/push action frame solenoid, 10 mm stroke, 12VDC

pull/push action frame solenoid, 10 mm stroke, 12VDC

10mm stroke, voltage and moving direction(push or pull) can be customized base on requirement.
Model : OS-15B

10mm stroke, voltage and moving direction(push or pull) can be customized base on requirement.
Rated voltage DC12V
DC resistance 3.5Ω± 10% @20℃
Dielectric strength AC-1200V(50/60Hz) for 1sec
Insulation resistance DC-500V 100MΩ MIN.
Pull force 5mm 1700g MIN.
8mm 1100g MIN.
Door lock and punch clock
