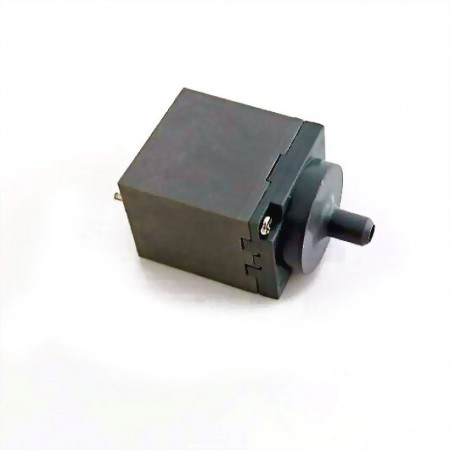

Proportional Valve with terminal, 3 VDC
Customized product. Quick exhaust air valve. Could control the release speed by using analog voltage or pulse width modulation.
Model :
VS-LM01
Customized product. Quick exhaust air valve. Could control the release speed by using analog voltage or pulse width modulation.
| Rated voltage | DC2.0V~DC3.5V |
| Rated current | 100mA REF |
| DC resistance | 30 ohm(20℃)±10% |
| Rated power consumption | 0.3W |
| Rated use condition | Continuous |
| Rated pressure | Max. 300 Hg |
| Rated temperature | 0~45℃ |
| Insulation grade | A class |
| Use fluid | Air |
| Leakage | DC2.3V supply to solenoid at 100 C.C tank with 300 mm Hg max., the pressure reduction is less than 4mm HG/min. |
| Release speed | 3~5 mm Hg from 270 mm HG to 30 mmHg |
| Exhaust speed | From 260 mm Hg to 15 mm HG in 3 seconds.(at 100C.C. tank) |
Arm blood pressure manometer, wrist blood pressure manometer.
