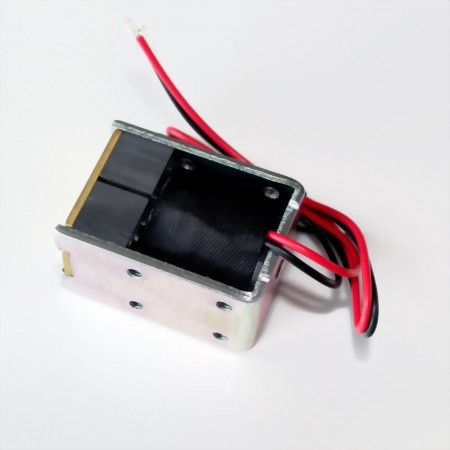

pullpush action frame solenoid with magnet, 4-10 mm stroke, 24VDC

4-10 mm stroke, 24VDC, Customized design service available. Monostable solenoid.
Model : OS-K10SL

Also known as open frame solenoid, D frame solenoid , linear solenoid or holding solenoid.

4-10 mm stroke, 24VDC, Customized design service available. Monostable solenoid.

Rated voltage DC24V
DC resistance 72Ω± 10% @20℃
Rated current 200mA
Dielectric strength AC-1200V(50/60Hz) for 1sec
Insulation resistance DC-500V 100MΩ MIN.
Pull force 4mm 400g MIN.
0mm 2000g MIN.
Time recorder
