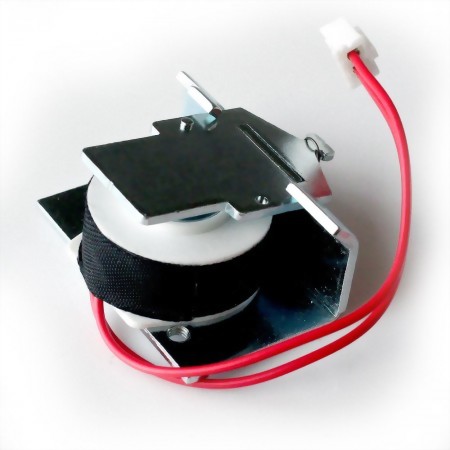

Flapper Solenoid,12 VDC
The rate voltage of this flapper solenoid is 12 VDC. In can general 16g force at stroke 4 mm. It can also be customized by request. The flapper solenoid can be used for printer, vending machine and a stopper for gear chain.
Model :
FS-08C
The rate voltage of this flapper solenoid is 12 VDC. In can general 16g force at stroke 4 mm. It can also be customized by request. The flapper solenoid can be used for printer, vending machine and a stopper for gear chain.
| Rated voltage | DC12V | |
| DC resistance | 60Ω± 10% @20℃ | |
| Pull force | 2mm | 0.471N MIN. |
| 4mm | 0.157N MIN. | |
| Dielectric strength | AC-1200V(50/60Hz) for 1sec | |
| Insulation resistance | DC-500V 100MΩ MIN. | |
Gear chain stopper
