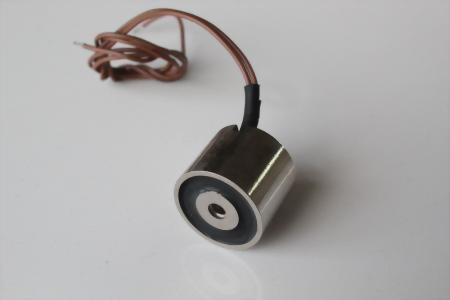

Electromagnet, 12 VDC

High quality electromagnets. Voltage, holding force and dimension could be customized by requirement. The rate voltage of HS-M2520 is 12VDC and it could gerneral 1NT force.
Model : HS-M2520

High quality electromagnets. Voltage, holding force and dimension could be customized by requirement. The rate voltage of HS-M2520 is 12VDC and it could gerneral 1NT force.
Rated voltage DC12V
DC resistance 60Ω± 10% @20℃
Rated current 200mA
Dielectric strength AC-1200V(50/60Hz) for 1sec
Insulation resistance DC-500V 50MΩ MIN
Force 1NT
Door lock, car brake
