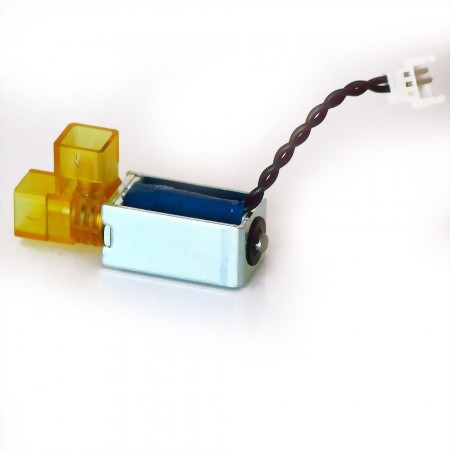

2-3Way Ink Valve
Customized product. Resistance for chemical matter, Normally closed solenoid.
Model :
OS-V04F
Customized product. Resistance for chemical matter, Normally closed solenoid.
| Rated Voltage | TYP 24VDC (MAX 25.2V) |
| Coil resistance | 320Ω±5% |
| Operation pressure | 0 to 6psi |
| Leak Rate | for both ports (inlet and outlet) <0.2SCCM @ 7psi tested with air (25Pa/10sec) |
| MAX VALVE OPERATING TEMPERATURE | 60℃ |
|
Valve must be closed at 0.5V and below Valve must be opened at 20.0V and above |
|
| Life target | >15000 cycles and 8 years duty cycle: 15 MIN Open |
| Closing time | <300ms |
| Flow | <70CC /MIN |
| Pressure loss |
70CC/MIN & 6cp <0.2psi |
Industrial printer
