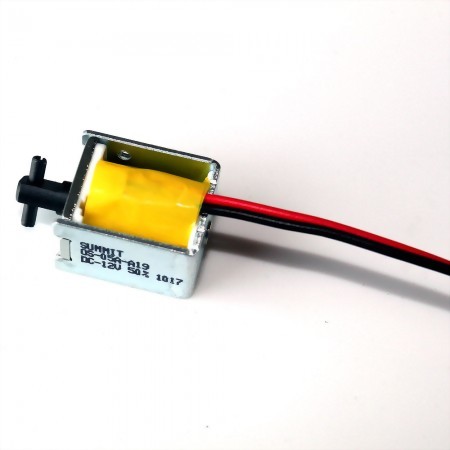

pullpush action frame solenoid, 2 mm stroke, 12VDC

2 mm stroke, 12VDC, customizable voltage.

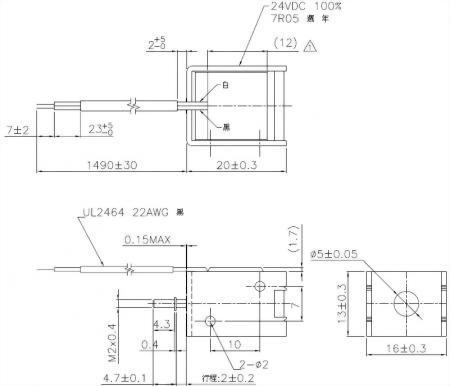

Model : OS-05A

Also known as open frame solenoid, latch solenoid or linear solenoid.

2 mm stroke, 12VDC, customizable voltage.


Rated voltage DC12V
DC resistance 32Ω± 10% @20℃
Dielectric strength AC-1200V(50/60Hz) for 1sec
Insulation resistance DC-500V 100MΩ MIN..
Pull force 2mm 185g MIN.
Utility type solenoid for consumer electronics, game machine and actuators.
